Description

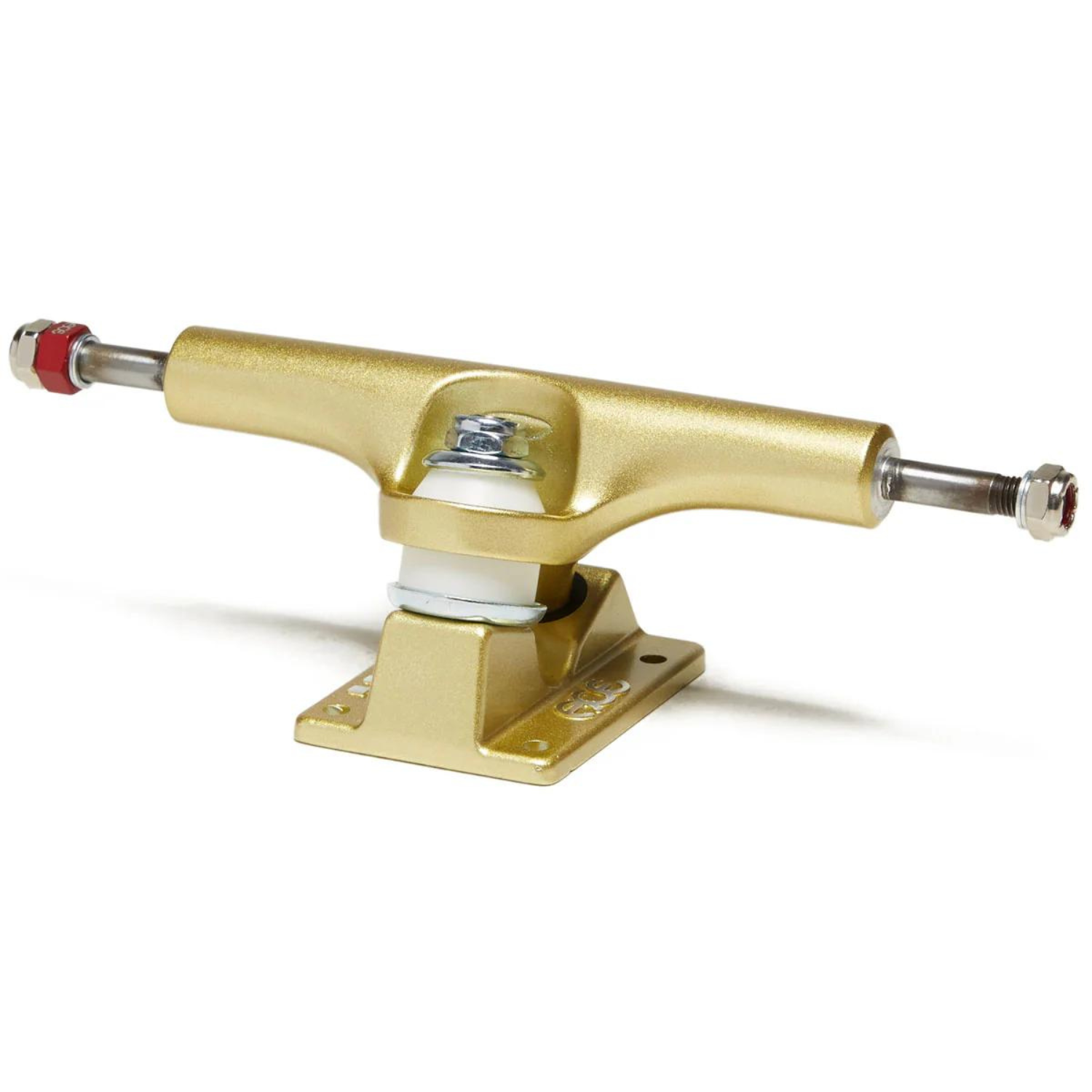

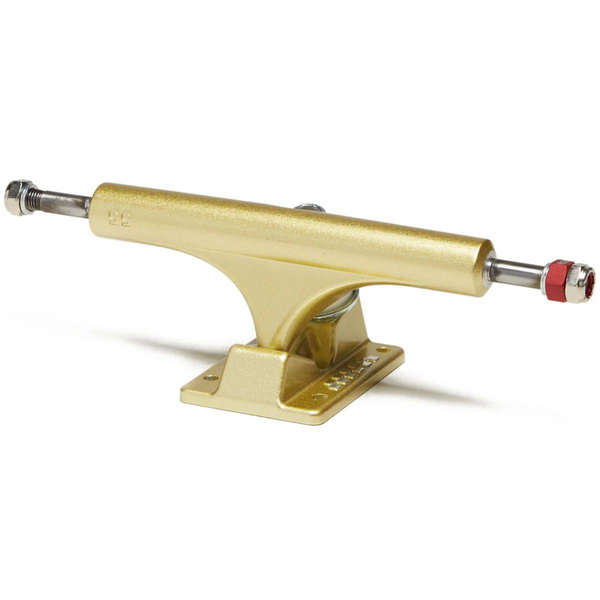

Ace AF-1 Skateboard Trucks
The ACE AF1 features game-changing performance without deviating from Ace's original Ace geometry. The AF1 is carefully manufactured using their proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest and longest lasting cast truck on the market.
• Manufactured with high-quality AA 356.2 alloy using a proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.
• Each truck includes bonus red Axle Re-Theader Die
Size Chart
Specs
| SIZE | 7.75 AXLE | 8.0 AXLE | 8.25 AXLE | 8.5 AXLE | 9.0 AXLE | 9.5 AXLE | 10.0 AXLE |
|---|---|---|---|---|---|---|---|
| HANGER (MM): | 125.9 | 133.3 | 138.9 | 144.1 | 160.2 | 172.9 | 180.0 |
| BOARD RANGE (IN): | 7.5 - 8.0 | 7.75 - 8.25 | 8.0 - 8.5 | 8.25 - 8.75 | 8.75 - 9.25 | 9.25 - 9.75 | 9.75 - 10.25 |
| HEIGHT (MM): | 52.0 | 52.0 | 52.0 | 52.0 | 52.0 | 52.0 | 53.0 |
| WEIGHT (G): | 372.1 | 384.2 | 395.5 | 401.8 | 414.5 | 432.4 | 436.5 |
